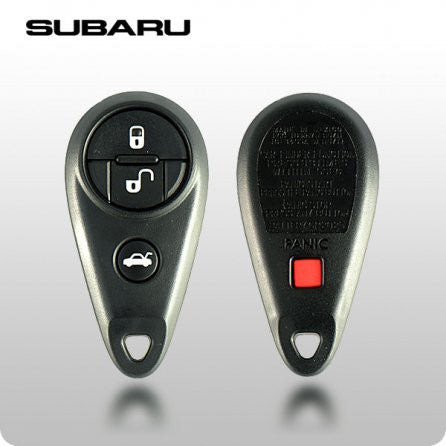

Subaru 1999-2007 4-Btn Remote FCC ID: NHVWB1U711
Subaru 1999-2007 4-Btn Remote FCC ID: NHVWB1U711
Couldn't load pickup availability
Description Original Refirbished
| Works on the Following Models: | Subaru Forester 1999-2004 Subaru Forester 2009 Subaru Impreza 1999-2004 Subaru Impreza 2008-2009 Subaru Legacy 1999-2004 Subaru Legacy 2006-2007 Subaru Outback 2006-2007 Subaru STi 2008-2009 Subaru Tribeca 2007 Subaru WRX 2008-2009 |
|---|---|
| Part #: | 88036-XA010 |
| IC: | 3495A-WB1U711 |
| FCC ID: | NHVWB1U711 |
| Buttons: | Lock Unlock Trunk Panic (on back) |
| Reusable: | Yes |
88036XA010
Programming Instructions:
1. Deactivate alarm if equipped.
2. Open drivers door, get in vehicle and close door. (all other doors closed)
3. Within 15 seconds, turn ignition to ON position and back to LOCK position 10 times.
Leave key in ignition.
Horn will sound once to indicate you have entered programming mode.
4. Within in 45 seconds:
A. Open and close drivers door.
B. Press LOCK or UNLOCK button on remote you want to program.
Horn sounds twice to indicate remote was programmed.
5. To program additional remotes repeat steps 4A and 4B for each remote
Horn will sound after each remote is programmed.
6. When the last remote has been programmed remove key from ignition.
Horn will sound three times to indicate exit of programming mode.
7. Test remote(s).
