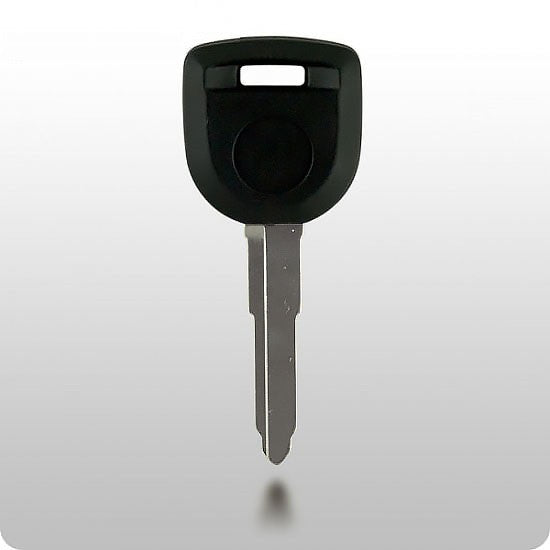

Mazda MZ24PT Key

SKU: MK-MZ24PT

FCC: MAZ24RT17

CHIP ID: TEXAS ID 4D 63 80 BIT

Mazda 2 (2011-2016)
Mazda 3 (2004-2016)
Mazda 5 (2006-2016)
Mazda 6 (2003-2016)
CX7 (2007-2016)
CX9 (2007-2016)
Miata MX5 (2006-2014)
RX8 (2004-2011)

Programming Instructions: You Must have Two Master Working Keys (keys that came with the vehicle from factory.) to perform this procedure. If you only have one working key or none at all it must be programmed by a dealer or locksmith! If you do have two working key and one of the keys are copies or clone key. The procedure below wonƒ??t work. Your New third (unprogrammed) key must also be cut prior to performing this procedure. 1. Insert an existing (working) key into the ignition cylinder. 2. Turn the ignition cylinder ON (just shy of starting the car Without cranking the engine) and back to OFF. Ignition should stay in ON position for at least one second. 3. Remove the existing key and WITHIN TEN SECONDS, insert a second working key and turn to ON and then back to OFF. Ignition must be on for at least one second but no more than ten seconds. Remove key. 4. Insert the New (unprogrammed) key before twenty seconds have elapsed and turn to ON. Leave it in the ON position for at least one second and turn back to OFF. 5. The security light will light up for THREE seconds to indicate the new key has been successfully programmed.
