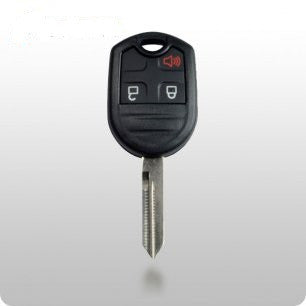

2001 - 2018 FORD MERCURY EDGE ESCAPE EXPEDITION EXPLORER ECONOLINE F-SERIES FLEX FREESTYLE FUSION RANGER TARUS X WINDSTAR 80-Bit 3-Button Remote Head Key 164-R8070

OEM

Designed for 2011+ models, but backwards compatible with previous years.

Buttons Info: L,U,P

Aftermarket - Remote Section On Board Programming

Programming Instructions: You Must have Two Master Working Keys (keys that came with the vehicle from factory.) to perform this procedure. If you only have one working key or none at all it must be programmed by a dealer or locksmith! If you do have two working key and one of the keys are copies or clone key. The procedure below won’t work. Your New third (unprogrammed) key must also be cut prior to performing this procedure.

1. Insert an existing (working) key into the ignition cylinder.

2. Turn the ignition cylinder ON (Position 3) and back to OFF (Position 1). Ignition should stay in ON position for at least three seconds but no more than ten seconds.

3. Remove the existing key and WITHIN TEN SECONDS, insert a second working key and turn to ON and then back to OFF. Ignition should stay in ON position for at least three seconds but no more than ten seconds.

4. Remove the second key, insert the New (unprogrammed) key before twenty seconds have elapsed and turn to ON. Leave it in the ON position for at least six seconds and turn back to OFF.

5. If the new key has been successfully programmed it will start the vehicle and operate the remote keyless entry system. The theft indicator light will light up for three seconds to indicate the key was successfully programmed.

Remote Programming:

Obtain all remote transmitters for this vehicle. It's not necessary to re-program your working remote head keys as those will continue to work. If you are programming additional non-remote head key remotes for your vehicle then they must all be programmed during this procedure. You are able to program up to Four remotes in addition to your remote head keys. Do not depress the brake pedal during procedure.

1.Turn ignition from OFF to RUN 8 times within 10 seconds, with the 8th time ending in RUN. Door locks will cycle to confirm programming mode. (Off is the position where you can remove your key, RUN is the position just shy of starting your car.)

2.Within 20 seconds press any button on the first keyless remote to be programmed. Door locks will cycle to confirm programming. If you only have one remote then skip to step 4.

3.Within 20 seconds, press any button on the second keyless remote. Door locks will cycle again to confirm programming. Repeat step 3. for all other remotes.

4.Turn ignition to OFF. Locks will again cycle to indicate end of programming mode.
