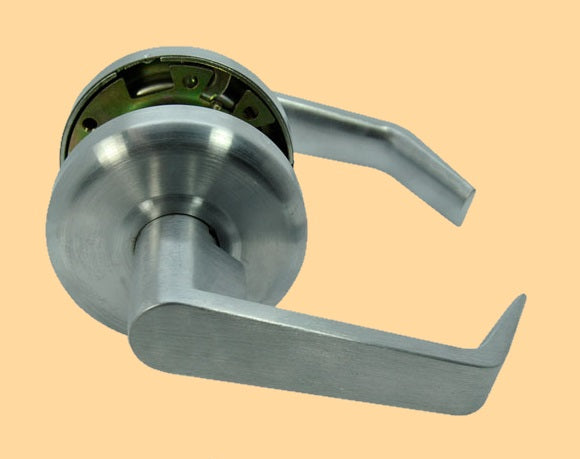

Arrow - Grade 2 - Passage Lever

Description
AVAILABLE IN 2-3/4" BACKSET ONLY. If you need to convert to a 2-3/8" backset, please purchase the Dead Latch separately.

The RL Series has been enhanced to offer removable throughbolts and a wide variety of designs, finishes and functions. The RL Series cylindrical locksets are an economical value for a variety of applications. Perfect for multi-family housing markets as well as commercial applications.

Function: Passage
Backset: 2-3/4"
Construction: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" bore through door.
Door Thickness: Fits 1-3/8" to 1-3/4" doors standard
Latch: Brass 1/2" throw, UL Listed, guarded latchbolt on all locking functions
Latch Front: 1-1/8" x 2-1/4"
Exposed Trim: RL Levers are pressure cast zinc measuring 4-3/4" in length. RL Roses are wrought brass 3-3/8" diameter. Total projection from face of door is 2-1/2".
Strike: 1-1/4" x 4-7/8", 1-1/4" lip, square corner
Handling: Non-handed
Thru-Bolts: Removable thru-bolts standard
Warranty: Five Year Mechanical Warranty

Cal-Royal SL-Series
Corbin Russwin CL3851
Falcon W501
Falcon Y521
General Lock L280
Sargent 7G05
Sargent 65G05
Schlage AL53
US Lock 2052

Certification:
The RL Series has been designed to meet the requirements of ANSI, A156.2, Series 4000, Grade 2 UL Listed for use on 3 hour, A label single swinging doors.
RL Levers conform to ADA requirements.
