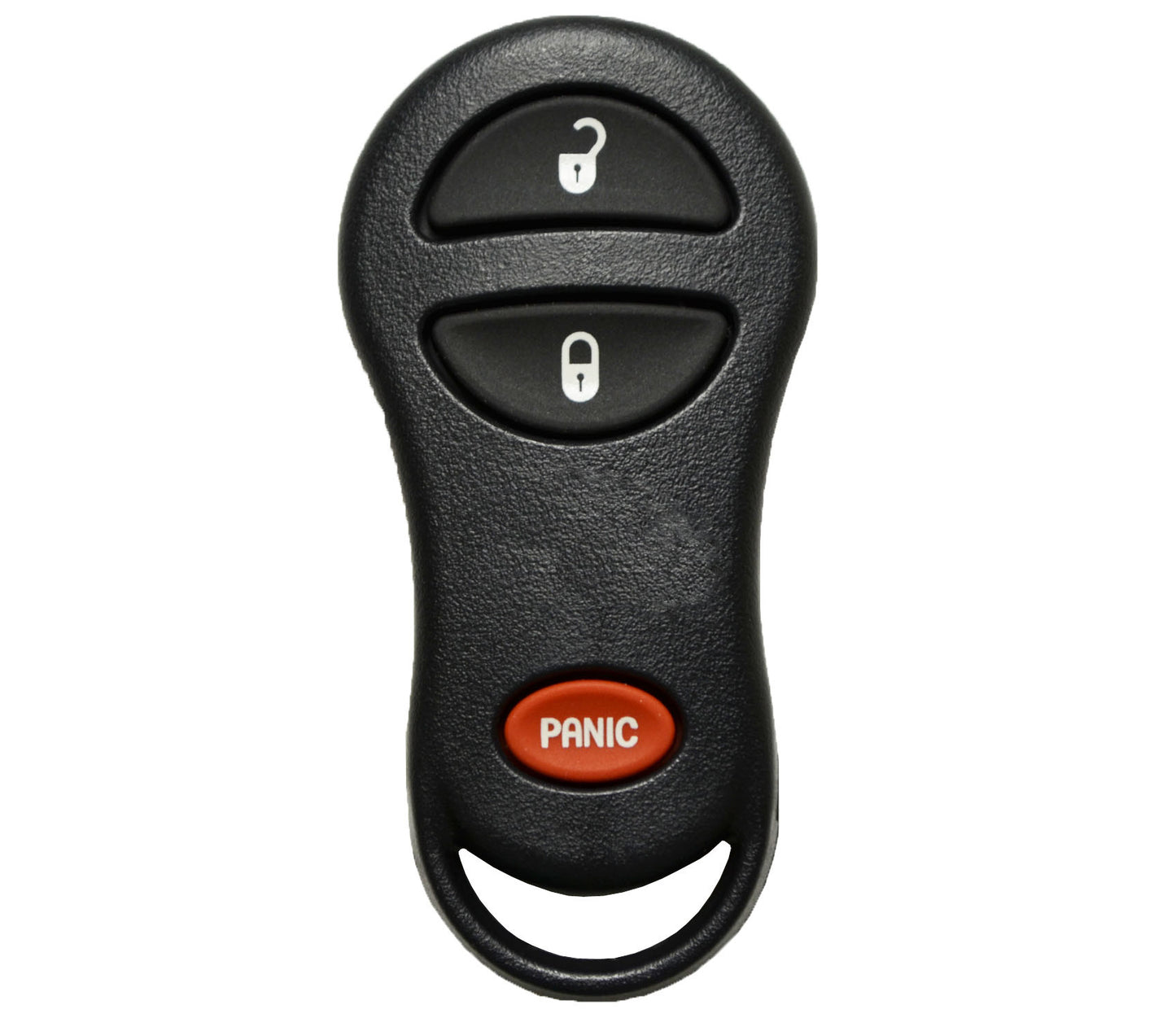

Dodge Chrysler Plymouth 1999 - 2005 3 Btn Remote GQ43VT17T

2003 - 2005 Dodge Ram

Cross Reference:
Part # 04686481AF, 04686481AA, 04686481AB, 04686481AC, 04686481AD, 04686481AE
FCC ID: GQ43VT17T

Buttons: Lock, Unlock, Horn

Fits:
2001-2003 Chrysler Prowler
1999-2003 Chrysler Town & Country (without power sliding doors)
2001-2004 Chrysler Voyager (without power sliding doors)
1999-2003 Dodge Caravan (without power sliding doors)
2001-2004 Dodge Dakota
2001-2003 Dodge Durango
2003-2005 Dodge Ram Pickup
2001 Plymouth Prowler
1999-2002 Plymouth Voyager

Onboard Programming: Yes - 1 working remote

Programming Instructions: 1. Enter your vehicle and close all doors. 2. Fasten your seat belt ( fastening the seat belt will cancel any chiming that may confuse you during this programming procedure.) 3. Place key into the ignition. 4. Turn the ignition to the ON position ( DO NOT START THE ENGINE ) 5. Press and hold the UNLOCK button on a working remote. 6. Continue to hold the UNLOCK button, wait at least 4 seconds, but no longer than 10 seconds, then press and hold PANIC button. 7. When a single chime is heard, release both buttons. The chime indicates the system is in program mode. 8. Press and release both the LOCK and UNLOCK buttons, simultaneously on the remote to be programmed. 9. A single chime will be heard. The chime indicates the the remote was recognized. 10. Within 4 seconds of hearing the chime, press and release any button on the remote being programmed. 11. A single chime will be heard The chime indicates the remote has been programmed. 12. Repeat steps 8 to 11 for a total of 4 remotes. 13. Turn the ignition to the OFF position or wait 60 seconds to exit program mode.

IKS R-CHY-17T3

MWK -1222
